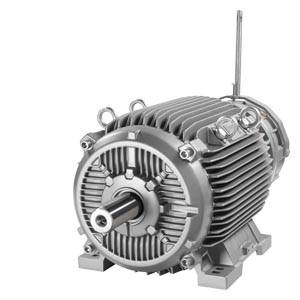

Innomotics 1PC1341-2DC0 Crane Motor 6-pole

Name: Innomotics 1PC1341-2DC0 Crane Motor 6-pole
Brand: Innomotics
SKU: 1PC1341-2DC0
Availability: InStock

SKU: 1PC1341-2DC0

Crane Motors

Crane duty motor S3, 6-pole, 970 rpm, frame 280 S, 797.0 Nm

Rated Speed

970 rpm

Pole Configuration

6-pole

Shaft height (H)

280 mm

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	970 rpm
Rated Torque	797.0 Nm
Rated Current	81.0 A

Mechanical

Pole Configuration	6-pole
Duty Type	S3 — Intermittent duty
Frame Size	280 S
Weight	460 kg

Dimensions

Shaft height (H)	280 mm
Shaft diameter (D)	65 mm
Shaft length (E)	140 mm
Key width (F)	18 mm
Dimension over key (GA)	69 mm
Foot holes - across (A)	457 mm
Foot holes - along (B)	368 mm
Shaft shoulder to foot hole (C)	190 mm
Foot hole diameter (K)	24 mm
Overall width (AB)	540 mm
Overall diameter (AC)	551 mm
Centre to top of terminal box (AD)	433 mm
Overall length (L)	960 mm
Overall length incl. shaft (LC)	1105 mm

Detailed Description

Innomotics 1PC1341-2DC0 crane motor for 6-pole operation at 970 rpm. Designed for intermittent duty S3 crane applications. Frame size 280 S. Rated torque 797.0 Nm. Rated current 81.0 A. Weight 460 kg.
