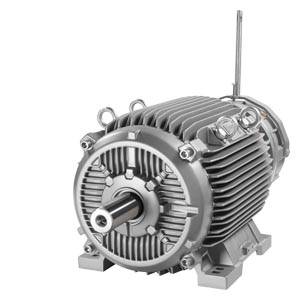

Innomotics 1PC1341-1CC0 Crane Motor 6-pole

Name: Innomotics 1PC1341-1CC0 Crane Motor 6-pole
Brand: Innomotics
SKU: 1PC1341-1CC0
Availability: InStock

SKU: 1PC1341-1CC0

Crane Motors

Crane duty motor S3, 6-pole, 955 rpm, frame 132 S, 29.5 Nm

Rated Speed

955 rpm

Pole Configuration

6-pole

Shaft height (H)

132 mm

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	955 rpm
Rated Torque	29.5 Nm
Rated Current	4.1 A

Mechanical

Pole Configuration	6-pole
Duty Type	S3 — Intermittent duty
Frame Size	132 S
Weight	56 kg

Dimensions

Shaft height (H)	132 mm
Shaft diameter (D)	38 mm
Shaft length (E)	80 mm
Key width (F)	10 mm
Dimension over key (GA)	41 mm
Foot holes - across (A)	216 mm
Foot holes - along (B)	140 mm
Shaft shoulder to foot hole (C)	89 mm
Foot hole diameter (K)	12 mm
Overall width (AB)	256 mm
Overall diameter (AC)	262 mm
Centre to top of terminal box (AD)	202 mm
Overall length (L)	466.5 mm
Overall length incl. shaft (LC)	535.5 mm

Detailed Description

Innomotics 1PC1341-1CC0 crane motor for 6-pole operation at 955 rpm. Designed for intermittent duty S3 crane applications. Frame size 132 S. Rated torque 29.5 Nm. Rated current 4.1 A. Weight 56 kg.
