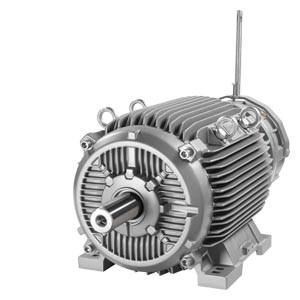

Innomotics 1PC1341-2AC4 Crane Motor 6-pole

Name: Innomotics 1PC1341-2AC4 Crane Motor 6-pole
Brand: Innomotics
SKU: 1PC1341-2AC4
Availability: InStock

SKU: 1PC1341-2AC4

Crane Motors

Crane duty motor S3, 6-pole, 962 rpm, frame 200 L, 265.0 Nm

Rated Speed

962 rpm

Pole Configuration

6-pole

Shaft height (H)

200 mm

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	962 rpm
Rated Torque	265.0 Nm
Rated Current	26.7 A

Mechanical

Pole Configuration	6-pole
Duty Type	S3 — Intermittent duty
Frame Size	200 L
Weight	200 kg

Dimensions

Shaft height (H)	200 mm
Shaft diameter (D)	55 mm
Shaft length (E)	110 mm
Key width (F)	16 mm
Dimension over key (GA)	59 mm
Foot holes - across (A)	318 mm
Foot holes - along (B)	305 mm
Shaft shoulder to foot hole (C)	133 mm
Foot hole diameter (K)	18.5 mm
Overall width (AB)	378 mm
Overall diameter (AC)	396 mm
Centre to top of terminal box (AD)	315 mm
Overall length (L)	721 mm
Overall length incl. shaft (LC)	860 mm

Detailed Description

Innomotics 1PC1341-2AC4 crane motor for 6-pole operation at 962 rpm. Designed for intermittent duty S3 crane applications. Frame size 200 L. Rated torque 265.0 Nm. Rated current 26.7 A. Weight 200 kg.
