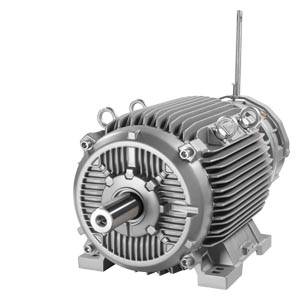

Innomotics 1PC1341-2DB0 Crane Motor 4-pole

Name: Innomotics 1PC1341-2DB0 Crane Motor 4-pole
Brand: Innomotics
SKU: 1PC1341-2DB0
Availability: InStock

SKU: 1PC1341-2DB0

Crane Motors

Crane duty motor S3, 4-pole, 1470 rpm, frame 280 S, 877.0 Nm

Rated Speed

1470 rpm

Pole Configuration

4-pole

Shaft height (H)

280 mm

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	1470 rpm
Rated Torque	877.0 Nm
Rated Current	135.0 A

Mechanical

Pole Configuration	4-pole
Duty Type	S3 — Intermittent duty
Frame Size	280 S
Weight	550 kg

Dimensions

Shaft height (H)	280 mm
Shaft diameter (D)	65 mm
Shaft length (E)	140 mm
Key width (F)	18 mm
Dimension over key (GA)	69 mm
Foot holes - across (A)	457 mm
Foot holes - along (B)	368 mm
Shaft shoulder to foot hole (C)	190 mm
Foot hole diameter (K)	24 mm
Overall width (AB)	540 mm
Overall diameter (AC)	551 mm
Centre to top of terminal box (AD)	433 mm
Overall length (L)	960 mm
Overall length incl. shaft (LC)	1105 mm

Detailed Description

Innomotics 1PC1341-2DB0 crane motor for 4-pole operation at 1470 rpm. Designed for intermittent duty S3 crane applications. Frame size 280 S. Rated torque 877.0 Nm. Rated current 135.0 A. Weight 550 kg.
