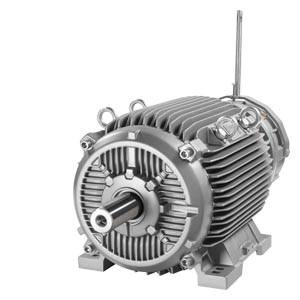

Innomotics 1PC1341-2CB2 Crane Motor 4-pole

Name: Innomotics 1PC1341-2CB2 Crane Motor 4-pole
Brand: Innomotics
SKU: 1PC1341-2CB2
Availability: InStock

SKU: 1PC1341-2CB2

Crane Motors

Crane duty motor S3, 4-pole, 1460 rpm, frame 250 M, 648.0 Nm

Rated Speed

1460 rpm

Pole Configuration

4-pole

Shaft height (H)

250 mm

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	1460 rpm
Rated Torque	648.0 Nm
Rated Current	99.0 A

Mechanical

Pole Configuration	4-pole
Duty Type	S3 — Intermittent duty
Frame Size	250 M
Weight	385 kg

Dimensions

Shaft height (H)	250 mm
Shaft diameter (D)	60 mm
Shaft length (E)	140 mm
Key width (F)	18 mm
Dimension over key (GA)	64 mm
Foot holes - across (A)	406 mm
Foot holes - along (B)	349 mm
Shaft shoulder to foot hole (C)	168 mm
Foot hole diameter (K)	24 mm
Overall width (AB)	490 mm
Overall diameter (AC)	497 mm
Centre to top of terminal box (AD)	410 mm
Overall length (L)	887 mm
Overall length incl. shaft (LC)	1002 mm

Detailed Description

Innomotics 1PC1341-2CB2 crane motor for 4-pole operation at 1460 rpm. Designed for intermittent duty S3 crane applications. Frame size 250 M. Rated torque 648.0 Nm. Rated current 99.0 A. Weight 385 kg.
