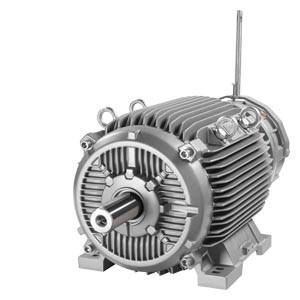

Innomotics 1PC1341-2AB5 Crane Motor 4-pole

Name: Innomotics 1PC1341-2AB5 Crane Motor 4-pole
Brand: Innomotics
SKU: 1PC1341-2AB5
Availability: InStock

SKU: 1PC1341-2AB5

Crane Motors

Crane duty motor S3, 4-pole, 1442 rpm, frame 200 L, 342.0 Nm

Rated Speed

1442 rpm

Pole Configuration

4-pole

Shaft height (H)

200 mm

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Speed	1442 rpm
Rated Torque	342.0 Nm
Rated Current	51.6 A

Mechanical

Pole Configuration	4-pole
Duty Type	S3 — Intermittent duty
Frame Size	200 L
Weight	230 kg

Dimensions

Shaft height (H)	200 mm
Shaft diameter (D)	55 mm
Shaft length (E)	110 mm
Key width (F)	16 mm
Dimension over key (GA)	59 mm
Foot holes - across (A)	318 mm
Foot holes - along (B)	305 mm
Shaft shoulder to foot hole (C)	133 mm
Foot hole diameter (K)	18.5 mm
Overall width (AB)	378 mm
Overall diameter (AC)	396 mm
Centre to top of terminal box (AD)	315 mm
Overall length (L)	721 mm
Overall length incl. shaft (LC)	860 mm

Detailed Description

Innomotics 1PC1341-2AB5 crane motor for 4-pole operation at 1442 rpm. Designed for intermittent duty S3 crane applications. Frame size 200 L. Rated torque 342.0 Nm. Rated current 51.6 A. Weight 230 kg.
