Innomotics 1PC1341-1EB4 Crane Motor 4-pole (1PC1341-1EB4) — Innomotics Crane Motors

Genuine Innomotics

CE Certified

ISO 9001 Quality

24h Quote Response

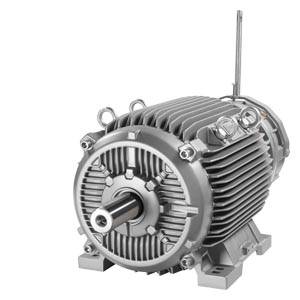

Innomotics 1PC1341-1EB4 Crane Motor 4-pole

SKU: 1PC1341-1EB4

Crane Motors

Crane duty motor S3, 4-pole, 1500 rpm

Rated Speed

1500 rpm

Pole Configuration

4-pole

Shaft height (H)

180 mm

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Speed

1500 rpm

Mechanical

Pole Configuration	4-pole
Duty Type	S3 — Intermittent duty
Weight	160 kg
Frame Size	180

Dimensions

Shaft height (H)	180 mm
Shaft diameter (D)	48 mm
Shaft length (E)	110 mm
Key width (F)	14 mm
Dimension over key (GA)	51.5 mm
Foot holes - across (A)	279 mm
Foot holes - along (B)	241 mm
Shaft shoulder to foot hole (C)	121 mm
Foot hole diameter (K)	15 mm
Overall width (AB)	339 mm
Overall diameter (AC)	356 mm
Centre to top of terminal box (AD)	286 mm
Overall length (L)	668 mm
Overall length incl. shaft (LC)	784 mm

Detailed Description

Innomotics 1PC1341-1EB4 crane motor for 4-pole operation at 1500 rpm. Designed for intermittent duty S3 crane applications. Weight 160 kg.
