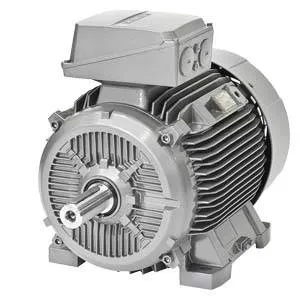

Innomotics SD 1LE1502 2.2kW 4P

SKU: 1LE1502-1AB4
Innomotics SD — Severe Duty

Motor IE1 Standard: 2.2 kW. 1425 rpm, Frame 100L, Eff. 79.7%. IP55.

Rated Power 50Hz
2.2 kW
Degree of Protection
IP55
Frame Size
100L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 2.2 kW
Rated Power 60Hz 2.55 kW
Rated Speed 1425 rpm
Rated Torque 14.7 Nm
Number of Poles 4
Rated Current 78.1 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 100L
Weight (IM B3) 29.0 kg
Moment of Inertia 0.0059 kgm2

Performance

Efficiency 4/4 Load 79.7 %
Efficiency 3/4 Load 80.3 %
Efficiency 2/4 Load 78.1 %
Power Factor 0.3

Dimensions

Shaft height (H) 100 mm
Shaft diameter (D) 28 mm
Shaft length (E) 60 mm
Key width (F) 8 mm
Dimension over key (GA) 31 mm
Foot holes - across (A) 160 mm
Foot holes - along (B) 140 mm
Shaft shoulder to foot hole (C) 63 mm
Foot hole diameter (K) 12 mm
Overall width (AB) 196 mm
Overall diameter (AC) 198 mm
Centre to top of terminal box (AD) 166 mm
Overall length (L) 418 mm
Overall length incl. shaft (LC) 489 mm

Detailed Description

SD Motors cast iron Basic Line IE1 Standard. Article 1LE1502-1AB4. Rated power 2.2 kW at 50 Hz. Speed 1425 rpm. Frame size 100L. Efficiency 79.7% at rated load. Degree of protection IP55. Insulation class F.
