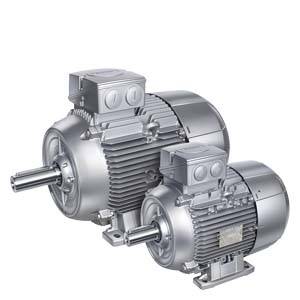

Innomotics GP 1LE1023 15.0kW 6P

Name: Innomotics GP 1LE1023 15.0kW 6P
Brand: Innomotics
SKU: 1LE1023-1EC4
Availability: InStock

SKU: 1LE1023-1EC4

Innomotics GP — General Purpose

Motor Eagle Line NEMA Premium Efficient: 15.0 kW. 1178 rpm, Frame 180L, Eff. 91.7%. IP55.

Rated Power 50Hz

15.0 kW

Degree of Protection

IP55

Frame Size

180L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	15.0 kW
Rated Power 60Hz	20.0 kW
Rated Speed	1178 rpm
Rated Torque	122.0 Nm
Number of Poles	6
Rated Current	26.0 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	180L
Weight (IM B3)	130.0 kg
Moment of Inertia	0.19 kgm2

Performance

Efficiency 4/4 Load	91.7 %
Efficiency 3/4 Load	92.0 %
Efficiency 2/4 Load	91.4 %
Power Factor	0.79

Dimensions

Shaft height (H)	180 mm
Shaft diameter (D)	48 mm
Shaft length (E)	110 mm
Key width (F)	14 mm
Dimension over key (GA)	52 mm
Foot holes - across (A)	279 mm
Foot holes - along (B)	279 mm
Shaft shoulder to foot hole (C)	121 mm
Foot hole diameter (K)	14.5 mm
Overall width (AB)	339 mm
Overall diameter (AC)	356 mm
Centre to top of terminal box (AD)	259 mm
Overall length (L)	698 mm
Overall length incl. shaft (LC)	814 mm

Detailed Description

GP Motors Eagle Line NEMA Premium MG1 Table 12-12 for the North American market. Article 1LE1023-1EC4. Rated power 15.0 kW at 50 Hz. Speed 1178 rpm. Frame size 180L. Efficiency 91.7% at rated load. Degree of protection IP55. Insulation class F.
