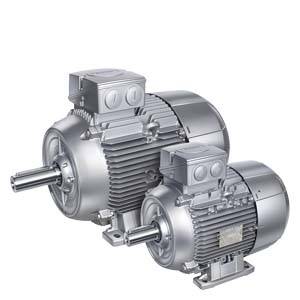

Innomotics GP 1LE1011 5.0kW 4P

SKU: 1LE1011-1ER4
Innomotics GP — General Purpose

Motor Pole-changing constant torque: 5.0 kW. 730 rpm, Frame 180L, Eff. 65.0%. IP55.

Rated Power 50Hz
5.0 kW
Degree of Protection
IP55
Frame Size
180L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 5.0 kW
Rated Power 60Hz 18.5 kW
Rated Speed 730 rpm
Rated Torque 65.0 Nm
Number of Poles 4
Rated Current 15.4 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 180L
Weight (IM B3) 132.0 kg
Moment of Inertia 0.13 kgm2

Performance

Efficiency 4/4 Load 65.0 %
Efficiency 3/4 Load 78.3 %
Efficiency 2/4 Load 86.6 %
Power Factor 0.6

Dimensions

Shaft height (H) 180 mm
Shaft diameter (D) 48 mm
Shaft length (E) 110 mm
Key width (F) 14 mm
Dimension over key (GA) 52 mm
Foot holes - across (A) 279 mm
Foot holes - along (B) 279 mm
Shaft shoulder to foot hole (C) 121 mm
Foot hole diameter (K) 14.5 mm
Overall width (AB) 339 mm
Overall diameter (AC) 356 mm
Centre to top of terminal box (AD) 259 mm
Overall length (L) 698 mm
Overall length incl. shaft (LC) 814 mm

Detailed Description

GP Motors pole-changing for constant torque. Dahlander winding. Article 1LE1011-1ER4. Rated power 5.0 kW at 50 Hz. Speed 730 rpm. Frame size 180L. Efficiency 65.0% at rated load. Degree of protection IP55. Insulation class F.
