Innomotics 1LE0043-2DC2 Cast Iron 55 kW IE3

SKU: 1LE0043-2DC2
Flow Line Motors

Cast Iron Flow Line motor, 55 kW, IE3, 988 rpm, frame 280 M

Rated Power
55 kW
Sound Pressure Level
64 dB(A)
Frame Size
280 M

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 55 kW
Rated Speed 988 rpm
Efficiency Class IE3
Efficiency at 100% Load 94.1 %
Efficiency at 75% Load 94.6 %
Efficiency at 50% Load 94.5 %
Power Factor 0.84
Rated Current 532.0 A
Rated Torque 100.0 Nm
Starting Current Ratio (Ist/In) 7.8
Starting Torque Ratio (Tstart/Tn) 3.0
Maximum Torque Ratio (Tmax/Tn) 3.0

Environmental

Sound Pressure Level 64 dB(A)
Sound Power Level 78 dB(A)

Mechanical

Frame Size 280 M
Enclosure Material Cast Iron
Weight 555 kg

Dimensions

Shaft height (H) 280 mm
Shaft diameter (D) 65 mm
Shaft length (E) 140 mm
Key width (F) 18 mm
Dimension over key (GA) 69 mm
Foot holes - across (A) 457 mm
Foot holes - along (B) 419 mm
Shaft shoulder to foot hole (C) 190 mm
Foot hole diameter (K) 24 mm
Overall width (AB) 540 mm
Overall diameter (AC) 551 mm
Centre to top of terminal box (AD) 433 mm
Overall length (L) 1070 mm
Overall length incl. shaft (LC) 1105 mm

Detailed Description

Innomotics 1LE0043-2DC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 55 kW at 988 rpm. Frame size 280 M. Efficiency 94.1% at full load. Rated current 532.0 A. Weight 555 kg.

Related Products from the 1LE0043 Cast Iron Flow Line Motors

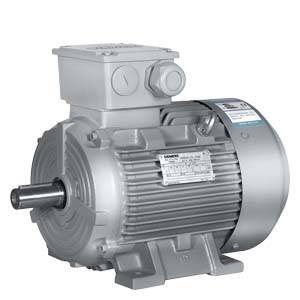

Innomotics 1LE0043-0DA2 Cast Iron 0.75 kW IE3
