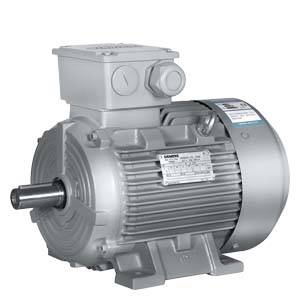

Innomotics 1LE0043-2CC2 Cast Iron 37 kW IE3

SKU: 1LE0043-2CC2
Flow Line Motors

Cast Iron Flow Line motor, 37 kW, IE3, 985 rpm, frame 250 M

Rated Power
37 kW
Sound Pressure Level
62 dB(A)
Frame Size
250 M

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 37 kW
Rated Speed 985 rpm
Efficiency Class IE3
Efficiency at 100% Load 93.3 %
Efficiency at 75% Load 94.1 %
Efficiency at 50% Load 94.1 %
Power Factor 0.84
Rated Current 359.0 A
Rated Torque 68.0 Nm
Starting Current Ratio (Ist/In) 7.8
Starting Torque Ratio (Tstart/Tn) 2.6
Maximum Torque Ratio (Tmax/Tn) 3.0

Environmental

Sound Pressure Level 62 dB(A)
Sound Power Level 76 dB(A)

Mechanical

Frame Size 250 M
Enclosure Material Cast Iron
Weight 395 kg

Dimensions

Shaft height (H) 250 mm
Shaft diameter (D) 60 mm
Shaft length (E) 140 mm
Key width (F) 18 mm
Dimension over key (GA) 64 mm
Foot holes - across (A) 406 mm
Foot holes - along (B) 349 mm
Shaft shoulder to foot hole (C) 168 mm
Foot hole diameter (K) 24 mm
Overall width (AB) 490 mm
Overall diameter (AC) 497 mm
Centre to top of terminal box (AD) 410 mm
Overall length (L) 887 mm
Overall length incl. shaft (LC) 1002 mm

Detailed Description

Innomotics 1LE0043-2CC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 37 kW at 985 rpm. Frame size 250 M. Efficiency 93.3% at full load. Rated current 359.0 A. Weight 395 kg.
