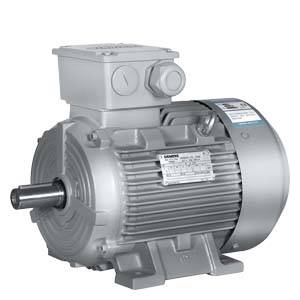

Innomotics 1LE0043-2BC2 Cast Iron 30 kW IE3

SKU: 1LE0043-2BC2
Flow Line Motors

Cast Iron Flow Line motor, 30 kW, IE3, 982 rpm, frame 225 M

Rated Power
30 kW
Sound Pressure Level
60 dB(A)
Frame Size
225 M

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 30 kW
Rated Speed 982 rpm
Efficiency Class IE3
Efficiency at 100% Load 92.9 %
Efficiency at 75% Load 93.9 %
Efficiency at 50% Load 94.3 %
Power Factor 0.84
Rated Current 292.0 A
Rated Torque 55.0 Nm
Starting Current Ratio (Ist/In) 7.6
Starting Torque Ratio (Tstart/Tn) 2.6
Maximum Torque Ratio (Tmax/Tn) 3.0

Environmental

Sound Pressure Level 60 dB(A)
Sound Power Level 74 dB(A)

Mechanical

Frame Size 225 M
Enclosure Material Cast Iron
Weight 321 kg

Dimensions

Shaft height (H) 225 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 356 mm
Foot holes - along (B) 311 mm
Shaft shoulder to foot hole (C) 149 mm
Foot hole diameter (K) 19 mm
Overall width (AB) 436 mm
Overall diameter (AC) 449 mm
Centre to top of terminal box (AD) 338 mm
Overall length (L) 818 mm
Overall length incl. shaft (LC) 933 mm

Detailed Description

Innomotics 1LE0043-2BC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 30 kW at 982 rpm. Frame size 225 M. Efficiency 92.9% at full load. Rated current 292.0 A. Weight 321 kg.
