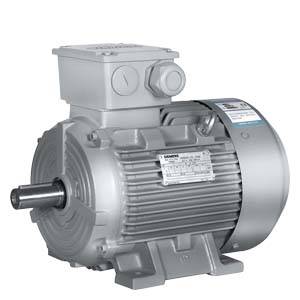

Innomotics 1LE0043-2BB2 Cast Iron 45 kW IE3

SKU: 1LE0043-2BB2
Flow Line Motors

Cast Iron Flow Line motor, 45 kW, IE3, 1482 rpm, frame 225 M

Rated Power
45 kW
Sound Pressure Level
65 dB(A)
Frame Size
225 M

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 45 kW
Rated Speed 1482 rpm
Efficiency Class IE3
Efficiency at 100% Load 94.2 %
Efficiency at 75% Load 94.2 %
Efficiency at 50% Load 93.7 %
Power Factor 0.85
Rated Current 290.0 A
Rated Torque 81.0 Nm
Starting Current Ratio (Ist/In) 8.3
Starting Torque Ratio (Tstart/Tn) 3.3
Maximum Torque Ratio (Tmax/Tn) 3.6

Environmental

Sound Pressure Level 65 dB(A)
Sound Power Level 78 dB(A)

Mechanical

Frame Size 225 M
Enclosure Material Cast Iron
Weight 322 kg

Dimensions

Shaft height (H) 225 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 356 mm
Foot holes - along (B) 311 mm
Shaft shoulder to foot hole (C) 149 mm
Foot hole diameter (K) 19 mm
Overall width (AB) 436 mm
Overall diameter (AC) 449 mm
Centre to top of terminal box (AD) 338 mm
Overall length (L) 818 mm
Overall length incl. shaft (LC) 933 mm

Detailed Description

Innomotics 1LE0043-2BB2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 45 kW at 1482 rpm. Frame size 225 M. Efficiency 94.2% at full load. Rated current 290.0 A. Weight 322 kg.
