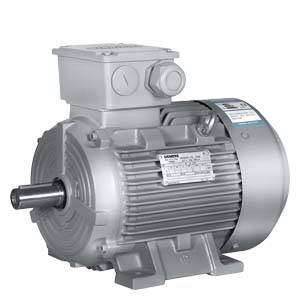

Innomotics 1LE0043-2AC4 Cast Iron 18.5 kW IE3

SKU: 1LE0043-2AC4
Flow Line Motors

Cast Iron Flow Line motor, 18.5 kW, IE3, 978 rpm, frame 200 L

Rated Power
18.5 kW
Sound Pressure Level
59 dB(A)
Frame Size
200 L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 18.5 kW
Rated Speed 978 rpm
Efficiency Class IE3
Efficiency at 100% Load 91.7 %
Efficiency at 75% Load 92.5 %
Efficiency at 50% Load 92.2 %
Power Factor 0.8
Rated Current 181.0 A
Rated Torque 36.5 Nm
Starting Current Ratio (Ist/In) 7.0
Starting Torque Ratio (Tstart/Tn) 2.3
Maximum Torque Ratio (Tmax/Tn) 3.0

Environmental

Sound Pressure Level 59 dB(A)
Sound Power Level 73 dB(A)

Mechanical

Frame Size 200 L
Enclosure Material Cast Iron
Weight 212 kg

Dimensions

Shaft height (H) 200 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 318 mm
Foot holes - along (B) 305 mm
Shaft shoulder to foot hole (C) 133 mm
Foot hole diameter (K) 18.5 mm
Overall width (AB) 378 mm
Overall diameter (AC) 396 mm
Centre to top of terminal box (AD) 315 mm
Overall length (L) 721 mm
Overall length incl. shaft (LC) 860 mm

Detailed Description

Innomotics 1LE0043-2AC4 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 18.5 kW at 978 rpm. Frame size 200 L. Efficiency 91.7% at full load. Rated current 181.0 A. Weight 212 kg.
