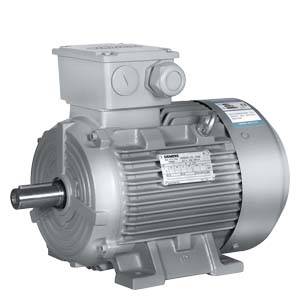

Innomotics 1LE0043-1DC4 Cast Iron 11 kW IE3

SKU: 1LE0043-1DC4
Flow Line Motors

Cast Iron Flow Line motor, 11 kW, IE3, 980 rpm, frame 160 L

Rated Power
11 kW
Sound Pressure Level
61 dB(A)
Frame Size
160 L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 11 kW
Rated Speed 980 rpm
Efficiency Class IE3
Efficiency at 100% Load 90.3 %
Efficiency at 75% Load 90.3 %
Efficiency at 50% Load 89.8 %
Power Factor 0.77
Rated Current 107.0 A
Rated Torque 23.0 Nm
Starting Current Ratio (Ist/In) 7.0
Starting Torque Ratio (Tstart/Tn) 2.7
Maximum Torque Ratio (Tmax/Tn) 3.6

Environmental

Sound Pressure Level 61 dB(A)
Sound Power Level 73 dB(A)

Mechanical

Frame Size 160 L
Enclosure Material Cast Iron
Weight 129 kg

Dimensions

Shaft height (H) 160 mm
Shaft diameter (D) 42 mm
Shaft length (E) 110 mm
Key width (F) 12 mm
Dimension over key (GA) 45 mm
Foot holes - across (A) 254 mm
Foot holes - along (B) 254 mm
Shaft shoulder to foot hole (C) 108 mm
Foot hole diameter (K) 15 mm
Overall width (AB) 300 mm
Overall diameter (AC) 314 mm
Centre to top of terminal box (AD) 236.5 mm
Overall length (L) 606 mm
Overall length incl. shaft (LC) 790 mm

Detailed Description

Innomotics 1LE0043-1DC4 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 11 kW at 980 rpm. Frame size 160 L. Efficiency 90.3% at full load. Rated current 107.0 A. Weight 129 kg.
