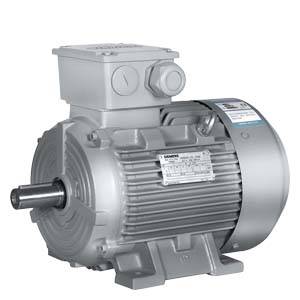

Innomotics 1LE0043-1DC2 Cast Iron 7.5 kW IE3

Name: Innomotics 1LE0043-1DC2 Cast Iron 7.5 kW IE3
Brand: Innomotics
SKU: 1LE0043-1DC2
Availability: InStock

SKU: 1LE0043-1DC2

Flow Line Motors

Cast Iron Flow Line motor, 7.5 kW, IE3, 980 rpm, frame 160 M

Rated Power

7.5 kW

Sound Pressure Level

61 dB(A)

Frame Size

160 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	7.5 kW
Rated Speed	980 rpm
Efficiency Class	IE3
Efficiency at 100% Load	89.1 %
Efficiency at 75% Load	90.4 %
Efficiency at 50% Load	90.3 %
Power Factor	0.78
Rated Current	73.1 A
Rated Torque	15.6 Nm
Starting Current Ratio (Ist/In)	6.5
Starting Torque Ratio (Tstart/Tn)	2.7
Maximum Torque Ratio (Tmax/Tn)	3.6

Environmental

Sound Pressure Level	61 dB(A)
Sound Power Level	73 dB(A)

Mechanical

Frame Size	160 M
Enclosure Material	Cast Iron
Weight	105 kg

Detailed Description

Innomotics 1LE0043-1DC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 7.5 kW at 980 rpm. Frame size 160 M. Efficiency 89.1% at full load. Rated current 73.1 A. Weight 105 kg.
