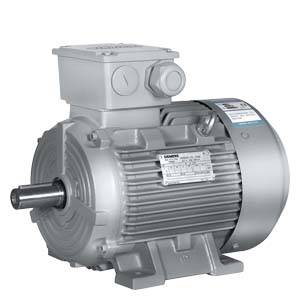

Innomotics 1LE0043-1CC0 Cast Iron 3 kW IE3

SKU: 1LE0043-1CC0
Flow Line Motors

Cast Iron Flow Line motor, 3 kW, IE3, 965 rpm, frame 132 S

Rated Power
3 kW
Sound Pressure Level
57 dB(A)
Frame Size
132 S

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 3 kW
Rated Speed 965 rpm
Efficiency Class IE3
Efficiency at 100% Load 85.6 %
Efficiency at 75% Load 86.6 %
Efficiency at 50% Load 86.0 %
Power Factor 0.75
Rated Current 29.7 A
Rated Torque 6.7 Nm
Starting Current Ratio (Ist/In) 6.0
Starting Torque Ratio (Tstart/Tn) 2.7
Maximum Torque Ratio (Tmax/Tn) 4.0

Environmental

Sound Pressure Level 57 dB(A)
Sound Power Level 69 dB(A)

Mechanical

Frame Size 132 S
Enclosure Material Cast Iron
Weight 59 kg

Dimensions

Shaft height (H) 132 mm
Shaft diameter (D) 38 mm
Shaft length (E) 80 mm
Key width (F) 10 mm
Dimension over key (GA) 41 mm
Foot holes - across (A) 216 mm
Foot holes - along (B) 140 mm
Shaft shoulder to foot hole (C) 89 mm
Foot hole diameter (K) 12 mm
Overall width (AB) 256 mm
Overall diameter (AC) 262 mm
Centre to top of terminal box (AD) 202 mm
Overall length (L) 466.5 mm
Overall length incl. shaft (LC) 535.5 mm

Detailed Description

Innomotics 1LE0043-1CC0 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 3 kW at 965 rpm. Frame size 132 S. Efficiency 85.6% at full load. Rated current 29.7 A. Weight 59 kg.
