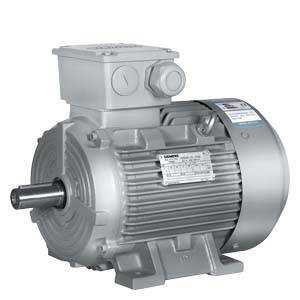

Innomotics 1LE0043-1BB2 Cast Iron 4 kW IE3

SKU: 1LE0043-1BB2
Flow Line Motors

Cast Iron Flow Line motor, 4 kW, IE3, 1450 rpm, frame 112 M

Rated Power
4 kW
Sound Pressure Level
53 dB(A)
Frame Size
112 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 4 kW
Rated Speed 1450 rpm
Efficiency Class IE3
Efficiency at 100% Load 88.6 %
Efficiency at 75% Load 89.6 %
Efficiency at 50% Load 89.2 %
Power Factor 0.81
Rated Current 26.3 A
Rated Torque 8.0 Nm
Starting Current Ratio (Ist/In) 7.8
Starting Torque Ratio (Tstart/Tn) 3.7
Maximum Torque Ratio (Tmax/Tn) 4.6

Environmental

Sound Pressure Level 53 dB(A)
Sound Power Level 65 dB(A)

Mechanical

Frame Size 112 M
Enclosure Material Cast Iron
Weight 49 kg

Dimensions

Shaft height (H) 112 mm
Shaft diameter (D) 28 mm
Shaft length (E) 60 mm
Key width (F) 8 mm
Dimension over key (GA) 31 mm
Foot holes - across (A) 190 mm
Foot holes - along (B) 140 mm
Shaft shoulder to foot hole (C) 70 mm
Foot hole diameter (K) 12 mm
Overall width (AB) 226 mm
Overall diameter (AC) 222 mm
Centre to top of terminal box (AD) 177 mm
Overall length (L) 415.5 mm
Overall length incl. shaft (LC) 475 mm

Detailed Description

Innomotics 1LE0043-1BB2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 4 kW at 1450 rpm. Frame size 112 M. Efficiency 88.6% at full load. Rated current 26.3 A. Weight 49 kg.
