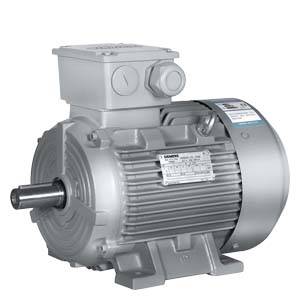

Innomotics 1LE0043-0EC4 Cast Iron 1.1 kW IE3

SKU: 1LE0043-0EC4
Flow Line Motors

Cast Iron Flow Line motor, 1.1 kW, IE3, 945 rpm, frame 90 L

Rated Power
1.1 kW
Sound Pressure Level
45 dB(A)
Frame Size
90 L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 1.1 kW
Rated Speed 945 rpm
Efficiency Class IE3
Efficiency at 100% Load 81.0 %
Efficiency at 75% Load 81.6 %
Efficiency at 50% Load 80.4 %
Power Factor 0.69
Rated Current 11.1 A
Rated Torque 2.85 Nm
Starting Current Ratio (Ist/In) 5.5
Starting Torque Ratio (Tstart/Tn) 2.7
Maximum Torque Ratio (Tmax/Tn) 3.5

Environmental

Sound Pressure Level 45 dB(A)
Sound Power Level 57 dB(A)

Mechanical

Frame Size 90 L
Enclosure Material Cast Iron
Weight 27 kg

Dimensions

Shaft height (H) 90 mm
Shaft diameter (D) 24 mm
Shaft length (E) 50 mm
Key width (F) 8 mm
Dimension over key (GA) 27 mm
Foot holes - across (A) 140 mm
Foot holes - along (B) 125 mm
Shaft shoulder to foot hole (C) 56 mm
Foot hole diameter (K) 10 mm
Overall width (AB) 165 mm
Overall diameter (AC) 178 mm
Centre to top of terminal box (AD) 126 mm
Overall length (L) 387 mm
Overall length incl. shaft (LC) 445 mm

Detailed Description

Innomotics 1LE0043-0EC4 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 1.1 kW at 945 rpm. Frame size 90 L. Efficiency 81.0% at full load. Rated current 11.1 A. Weight 27 kg.
