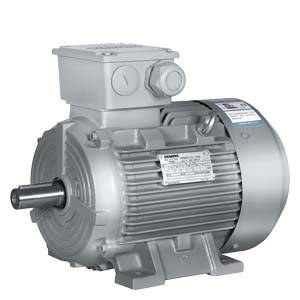

Innomotics 1LE0043-0EC0 Cast Iron 0.75 kW IE3

Name: Innomotics 1LE0043-0EC0 Cast Iron 0.75 kW IE3
Brand: Innomotics
SKU: 1LE0043-0EC0
Availability: InStock

SKU: 1LE0043-0EC0

Flow Line Motors

Cast Iron Flow Line motor, 0.75 kW, IE3, 940 rpm, frame 90 S

Rated Power

0.75 kW

Sound Pressure Level

45 dB(A)

Frame Size

90 S

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	0.75 kW
Rated Speed	940 rpm
Efficiency Class	IE3
Efficiency at 100% Load	78.9 %
Efficiency at 75% Load	80.3 %
Efficiency at 50% Load	78.0 %
Power Factor	0.7
Rated Current	7.6 A
Rated Torque	1.96 Nm
Starting Current Ratio (Ist/In)	5.0
Starting Torque Ratio (Tstart/Tn)	2.4
Maximum Torque Ratio (Tmax/Tn)	3.2

Environmental

Sound Pressure Level	45 dB(A)
Sound Power Level	57 dB(A)

Mechanical

Frame Size	90 S
Enclosure Material	Cast Iron
Weight	24 kg

Detailed Description

Innomotics 1LE0043-0EC0 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 0.75 kW at 940 rpm. Frame size 90 S. Efficiency 78.9% at full load. Rated current 7.6 A. Weight 24 kg.
