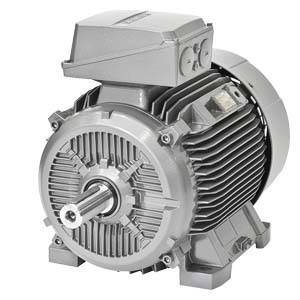

Innomotics SD 1LE1603 75.0kW 6P

SKU: 1LE1603-3AC0
Innomotics SD — Severe Duty

Motor IE3 Premium: 75.0 kW. 990 rpm, Frame 315S, Eff. 75.0%. IP55.

Rated Power 50Hz
75.0 kW
Degree of Protection
IP55
Frame Size
315S

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 75.0 kW
Rated Power 60Hz 90.0 kW
Rated Speed 990 rpm
Rated Torque 720.0 Nm
Number of Poles 6
Rated Current 136.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 315S
Weight (IM B3) 750.0 kg
Moment of Inertia 2.6 kgm2

Performance

Efficiency 4/4 Load 75.0 %
Efficiency 3/4 Load 90.0 %
Efficiency 2/4 Load 94.6 %
Power Factor 0.84

Dimensions

Shaft height (H) 315 mm
Shaft diameter (D) 65 mm
Shaft length (E) 140 mm
Key width (F) 18 mm
Dimension over key (GA) 69 mm
Foot holes - across (A) 508 mm
Foot holes - along (B) 406 mm
Shaft shoulder to foot hole (C) 216 mm
Foot hole diameter (K) 28 mm
Overall width (AB) 610 mm
Overall diameter (AC) 616 mm
Centre to top of terminal box (AD) 515 mm
Overall height (HD) 800 mm
Overall length (L) 1097 mm
Overall length incl. shaft (LC) 1242 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-3AC0. Rated power 75.0 kW at 50 Hz. Speed 990 rpm. Frame size 315S. Efficiency 75.0% at rated load. Degree of protection IP55. Insulation class F.
