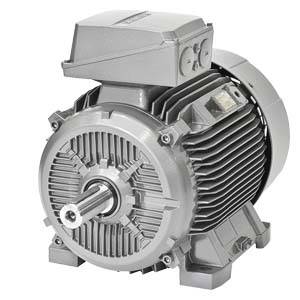

Innomotics SD 1LE1603 75.0kW 4P

SKU: 1LE1603-2CB6
Innomotics SD — Severe Duty

Motor IE3 Premium: 75.0 kW. 1486 rpm, Frame 250M, Eff. 75.0%. IP55.

Rated Power 50Hz
75.0 kW
Degree of Protection
IP55
Frame Size
250M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 75.0 kW
Rated Power 60Hz 86.0 kW
Rated Speed 1486 rpm
Rated Torque 480.0 Nm
Number of Poles 4
Rated Current 134.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 250M
Weight (IM B3) 510.0 kg
Moment of Inertia 1.1 kgm2

Performance

Efficiency 4/4 Load 75.0 %
Efficiency 3/4 Load 86.0 %
Efficiency 2/4 Load 95.0 %
Power Factor 0.85

Dimensions

Shaft height (H) 250 mm
Shaft diameter (D) 60 mm
Shaft length (E) 140 mm
Key width (F) 18 mm
Dimension over key (GA) 64 mm
Foot holes - across (A) 406 mm
Foot holes - along (B) 349 mm
Shaft shoulder to foot hole (C) 168 mm
Foot hole diameter (K) 24 mm
Overall width (AB) 490 mm
Overall diameter (AC) 497 mm
Centre to top of terminal box (AD) 410 mm
Overall length (L) 887 mm
Overall length incl. shaft (LC) 1002 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-2CB6. Rated power 75.0 kW at 50 Hz. Speed 1486 rpm. Frame size 250M. Efficiency 75.0% at rated load. Degree of protection IP55. Insulation class F.
