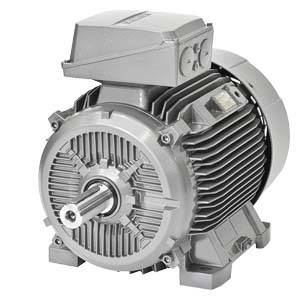

Innomotics SD 1LE1603 22.0kW 8P

SKU: 1LE1603-2BD2
Innomotics SD — Severe Duty

Motor IE3 Premium: 22.0 kW. 732 rpm, Frame 225M, Eff. 90.6%. IP55.

Rated Power 50Hz
22.0 kW
Degree of Protection
IP55
Frame Size
225M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 22.0 kW
Rated Power 60Hz 26.5 kW
Rated Speed 732 rpm
Rated Torque 285.0 Nm
Number of Poles 8
Rated Current 91.4 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 225M
Weight (IM B3) 280.0 kg
Moment of Inertia 0.55 kgm2

Performance

Efficiency 4/4 Load 90.6 %
Efficiency 3/4 Load 91.4 %
Efficiency 2/4 Load 91.2 %
Power Factor 0.6

Dimensions

Shaft height (H) 225 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 356 mm
Foot holes - along (B) 311 mm
Shaft shoulder to foot hole (C) 149 mm
Foot hole diameter (K) 19 mm
Overall width (AB) 436 mm
Overall diameter (AC) 449 mm
Centre to top of terminal box (AD) 338 mm
Overall length (L) 818 mm
Overall length incl. shaft (LC) 933 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-2BD2. Rated power 22.0 kW at 50 Hz. Speed 732 rpm. Frame size 225M. Efficiency 90.6% at rated load. Degree of protection IP55. Insulation class F.
