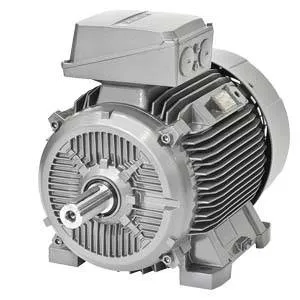

Innomotics SD 1LE1603 22.0kW 4P

SKU: 1LE1603-1EB4
Innomotics SD — Severe Duty

Motor IE3 Premium: 22.0 kW. 1470 rpm, Frame 180L, Eff. 93.0%. IP55.

Rated Power 50Hz
22.0 kW
Degree of Protection
IP55
Frame Size
180L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 22.0 kW
Rated Power 60Hz 25.3 kW
Rated Speed 1470 rpm
Rated Torque 143.0 Nm
Number of Poles 4
Rated Current 41.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 180L
Weight (IM B3) 178.0 kg
Moment of Inertia 0.14 kgm2

Performance

Efficiency 4/4 Load 93.0 %
Efficiency 3/4 Load 93.6 %
Efficiency 2/4 Load 93.6 %
Power Factor 0.83

Dimensions

Shaft height (H) 180 mm
Shaft diameter (D) 48 mm
Shaft length (E) 110 mm
Key width (F) 14 mm
Dimension over key (GA) 52 mm
Foot holes - across (A) 279 mm
Foot holes - along (B) 279 mm
Shaft shoulder to foot hole (C) 121 mm
Foot hole diameter (K) 14.5 mm
Overall width (AB) 339 mm
Overall diameter (AC) 356 mm
Centre to top of terminal box (AD) 259 mm
Overall length (L) 698 mm
Overall length incl. shaft (LC) 814 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-1EB4. Rated power 22.0 kW at 50 Hz. Speed 1470 rpm. Frame size 180L. Efficiency 93.0% at rated load. Degree of protection IP55. Insulation class F.
