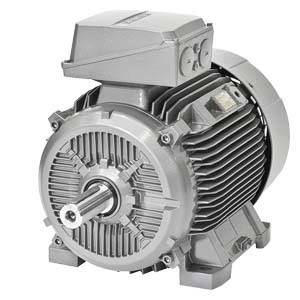

Innomotics SD 1LE1603 7.5kW 8P

SKU: 1LE1603-1DD4
Innomotics SD — Severe Duty

Motor IE3 Premium: 7.5 kW. 730 rpm, Frame 160L, Eff. 98.0%. IP55.

Rated Power 50Hz
7.5 kW
Degree of Protection
IP55
Frame Size
160L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 7.5 kW
Rated Power 60Hz 8.6 kW
Rated Speed 730 rpm
Rated Torque 98.0 Nm
Number of Poles 8
Rated Current 16.9 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 160L
Weight (IM B3) 135.0 kg
Moment of Inertia 0.13 kgm2

Performance

Efficiency 4/4 Load 98.0 %
Efficiency 3/4 Load 87.3 %
Efficiency 2/4 Load 87.9 %
Power Factor 0.73

Dimensions

Shaft height (H) 160 mm
Shaft diameter (D) 42 mm
Shaft length (E) 110 mm
Key width (F) 12 mm
Dimension over key (GA) 45 mm
Foot holes - across (A) 254 mm
Foot holes - along (B) 254 mm
Shaft shoulder to foot hole (C) 108 mm
Foot hole diameter (K) 15 mm
Overall width (AB) 300 mm
Overall diameter (AC) 314 mm
Centre to top of terminal box (AD) 236.5 mm
Overall length (L) 606 mm
Overall length incl. shaft (LC) 790 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-1DD4. Rated power 7.5 kW at 50 Hz. Speed 730 rpm. Frame size 160L. Efficiency 98.0% at rated load. Degree of protection IP55. Insulation class F.
