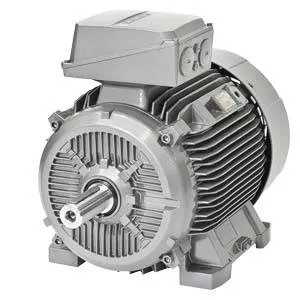

Innomotics SD 1LE1603 18.5kW 2P

SKU: 1LE1603-1DA4
Innomotics SD — Severe Duty

Motor IE3 Premium: 18.5 kW. 2955 rpm, Frame 160L, Eff. 60.0%. IP55.

Rated Power 50Hz
18.5 kW
Degree of Protection
IP55
Frame Size
160L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 18.5 kW
Rated Power 60Hz 21.3 kW
Rated Speed 2955 rpm
Rated Torque 60.0 Nm
Number of Poles 2
Rated Current 32.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 160L
Weight (IM B3) 123.0 kg
Moment of Inertia 0.068 kgm2

Performance

Efficiency 4/4 Load 60.0 %
Efficiency 3/4 Load 92.4 %
Efficiency 2/4 Load 92.8 %
Power Factor 0.9

Dimensions

Shaft height (H) 160 mm
Shaft diameter (D) 42 mm
Shaft length (E) 110 mm
Key width (F) 12 mm
Dimension over key (GA) 45 mm
Foot holes - across (A) 254 mm
Foot holes - along (B) 254 mm
Shaft shoulder to foot hole (C) 108 mm
Foot hole diameter (K) 15 mm
Overall width (AB) 300 mm
Overall diameter (AC) 314 mm
Centre to top of terminal box (AD) 236.5 mm
Overall length (L) 606 mm
Overall length incl. shaft (LC) 790 mm

Detailed Description

SD Motors Performance Line cast iron IE3 Premium. Da 0.75 a 200 kW. Article 1LE1603-1DA4. Rated power 18.5 kW at 50 Hz. Speed 2955 rpm. Frame size 160L. Efficiency 60.0% at rated load. Degree of protection IP55. Insulation class F.
