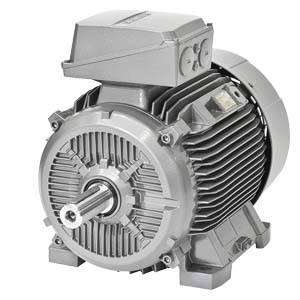

Innomotics SD 1LE1543 90.0kW 4P

SKU: 1LE1543-2DB2
Innomotics SD — Severe Duty

Motor APAC IE3: 90.0 kW. 1788 rpm, Frame 280M, Eff. 90.0%. IP55.

Rated Power 50Hz
90.0 kW
Degree of Protection
IP55
Frame Size
280M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 90.0 kW
Rated Power 60Hz 104.0 kW
Rated Speed 1788 rpm
Rated Torque 480.0 Nm
Number of Poles 4
Rated Current 136.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 280M
Weight (IM B3) 670.0 kg
Moment of Inertia 1.7 kgm2

Performance

Efficiency 4/4 Load 90.0 %
Efficiency 3/4 Load 95.4 %
Efficiency 2/4 Load 95.5 %
Power Factor 0.87

Dimensions

Shaft height (H) 280 mm
Shaft diameter (D) 65 mm
Shaft length (E) 140 mm
Key width (F) 18 mm
Dimension over key (GA) 69 mm
Foot holes - across (A) 457 mm
Foot holes - along (B) 419 mm
Shaft shoulder to foot hole (C) 190 mm
Foot hole diameter (K) 24 mm
Overall width (AB) 540 mm
Overall diameter (AC) 551 mm
Centre to top of terminal box (AD) 433 mm
Overall length (L) 1070 mm
Overall length incl. shaft (LC) 1105 mm

Detailed Description

SD Motors APAC Basic Line IE3 for the Asia-Pacific market. Article 1LE1543-2DB2. Rated power 90.0 kW at 50 Hz. Speed 1788 rpm. Frame size 280M. Efficiency 90.0% at rated load. Degree of protection IP55. Insulation class F.
