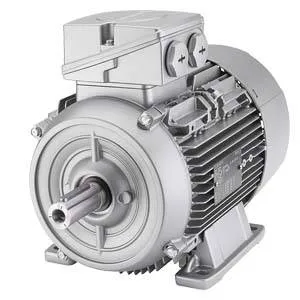

Innomotics SD 1LE1543 1.5kW 2P

SKU: 1LE1543-0DA6
Innomotics SD — Severe Duty

Motor APAC IE3: 1.5 kW. 3485 rpm, Frame 80M, Eff. 80.0%. IP55.

Rated Power 50Hz
1.5 kW
Degree of Protection
IP55
Frame Size
80M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 1.5 kW
Rated Power 60Hz 1.75 kW
Rated Speed 3485 rpm
Rated Torque 4.1 Nm
Number of Poles 2
Rated Current 2.65 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 80M
Weight (IM B3) 22.0 kg
Moment of Inertia 0.0015 kgm2

Performance

Efficiency 4/4 Load 80.0 %
Efficiency 3/4 Load 85.5 %
Efficiency 2/4 Load 85.5 %
Power Factor 0.83

Dimensions

Shaft height (H) 80 mm
Shaft diameter (D) 19 mm
Shaft length (E) 40 mm
Key width (F) 6 mm
Dimension over key (GA) 21.5 mm
Foot holes - across (A) 125 mm
Foot holes - along (B) 100 mm
Shaft shoulder to foot hole (C) 50 mm
Foot hole diameter (K) 9.5 mm
Overall width (AB) 150 mm
Overall diameter (AC) 159 mm
Centre to top of terminal box (AD) 121.5 mm
Overall length (L) 292 mm
Overall length incl. shaft (LC) 343 mm

Detailed Description

SD Motors APAC Basic Line IE3 for the Asia-Pacific market. Article 1LE1543-0DA6. Rated power 1.5 kW at 50 Hz. Speed 3485 rpm. Frame size 80M. Efficiency 80.0% at rated load. Degree of protection IP55. Insulation class F.
