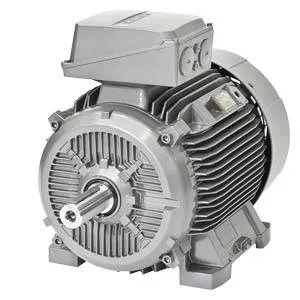

Innomotics SD 1LE1502 22.0kW 6P

SKU: 1LE1502-2AC5
Innomotics SD — Severe Duty

Motor IE1 Standard: 22.0 kW. 980 rpm, Frame 200L, Eff. 89.2%. IP55.

Rated Power 50Hz
22.0 kW
Degree of Protection
IP55
Frame Size
200L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 22.0 kW
Rated Power 60Hz 26.5 kW
Rated Speed 980 rpm
Rated Torque 215.0 Nm
Number of Poles 6
Rated Current 45.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 200L
Weight (IM B3) 218.0 kg
Moment of Inertia 0.3 kgm2

Performance

Efficiency 4/4 Load 89.2 %
Efficiency 3/4 Load 90.0 %
Efficiency 2/4 Load 89.6 %
Power Factor 0.79

Dimensions

Shaft height (H) 200 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 318 mm
Foot holes - along (B) 305 mm
Shaft shoulder to foot hole (C) 133 mm
Foot hole diameter (K) 18.5 mm
Overall width (AB) 378 mm
Overall diameter (AC) 396 mm
Centre to top of terminal box (AD) 315 mm
Overall length (L) 721 mm
Overall length incl. shaft (LC) 860 mm

Detailed Description

SD Motors cast iron Basic Line IE1 Standard. Article 1LE1502-2AC5. Rated power 22.0 kW at 50 Hz. Speed 980 rpm. Frame size 200L. Efficiency 89.2% at rated load. Degree of protection IP55. Insulation class F.
