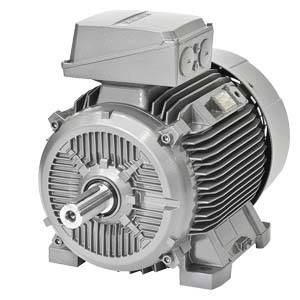

Innomotics SD 1LE1502 18.5kW 4P

Name: Innomotics SD 1LE1502 18.5kW 4P
Brand: Innomotics
SKU: 1LE1502-1DB6
Availability: InStock

SKU: 1LE1502-1DB6

Innomotics SD — Severe Duty

Motor IE1 Standard: 18.5 kW. 1460 rpm, Frame 160L, Eff. 89.3%. IP55.

Rated Power 50Hz

18.5 kW

Degree of Protection

IP55

Frame Size

160L

Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	18.5 kW
Rated Power 60Hz	21.3 kW
Rated Speed	1460 rpm
Rated Torque	121.0 Nm
Number of Poles	4
Rated Current	35.0 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	160L
Weight (IM B3)	127.0 kg
Moment of Inertia	0.068 kgm2

Performance

Efficiency 4/4 Load	89.3 %
Efficiency 3/4 Load	89.8 %
Efficiency 2/4 Load	89.2 %
Power Factor	0.85

Dimensions

Shaft height (H)	160 mm
Shaft diameter (D)	42 mm
Shaft length (E)	110 mm
Key width (F)	12 mm
Dimension over key (GA)	45 mm
Foot holes - across (A)	254 mm
Foot holes - along (B)	254 mm
Shaft shoulder to foot hole (C)	108 mm
Foot hole diameter (K)	15 mm
Overall width (AB)	300 mm
Overall diameter (AC)	314 mm
Centre to top of terminal box (AD)	236.5 mm
Overall length (L)	606 mm
Overall length incl. shaft (LC)	790 mm

Detailed Description

SD Motors cast iron Basic Line IE1 Standard. Article 1LE1502-1DB6. Rated power 18.5 kW at 50 Hz. Speed 1460 rpm. Frame size 160L. Efficiency 89.3% at rated load. Degree of protection IP55. Insulation class F.
