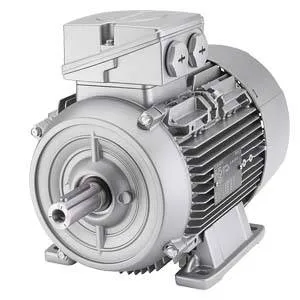

Innomotics GP 1LE1023 0.12kW 4P

Name: Innomotics GP 1LE1023 0.12kW 4P
Brand: Innomotics
SKU: 1LE1023-0BB2
Availability: InStock

SKU: 1LE1023-0BB2

Innomotics GP — General Purpose

Motor Eagle Line NEMA Premium Efficient: 0.12 kW. 1710 rpm, Frame 63M, Eff. 63.0%. IP55.

Rated Power 50Hz

0.12 kW

Degree of Protection

IP55

Frame Size

63M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	0.12 kW
Rated Power 60Hz	0.16 kW
Rated Speed	1710 rpm
Rated Torque	0.67 Nm
Number of Poles	4
Rated Current	63.0 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	63M
Weight (IM B3)	5.0 kg

Performance

Efficiency 4/4 Load	63.0 %
Efficiency 3/4 Load	67.0 %
Efficiency 2/4 Load	64.0 %
Power Factor	0.12

Dimensions

Shaft height (H)	63 mm
Shaft diameter (D)	11 mm
Shaft length (E)	23 mm
Key width (F)	4 mm
Dimension over key (GA)	12.5 mm
Foot holes - across (A)	100 mm
Foot holes - along (B)	80 mm
Shaft shoulder to foot hole (C)	40 mm
Foot hole diameter (K)	7 mm
Overall width (AB)	120 mm
Overall diameter (AC)	124 mm
Centre to top of terminal box (AD)	101 mm
Overall length (L)	202.5 mm
Overall length incl. shaft (LC)	232 mm

Detailed Description

GP Motors Eagle Line NEMA Premium MG1 Table 12-12 for the North American market. Article 1LE1023-0BB2. Rated power 0.12 kW at 50 Hz. Speed 1710 rpm. Frame size 63M. Efficiency 63.0% at rated load. Degree of protection IP55. Insulation class F.
