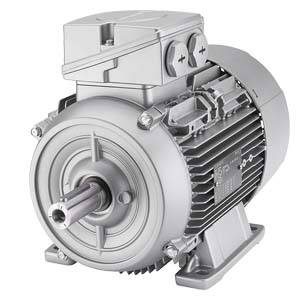

Innomotics GP 1LE1003 18.5kW 6P

SKU: 1LE1003-2AC4
Innomotics GP — General Purpose

Motor IE3 Premium Efficiency: 18.5 kW. 978 rpm, Frame 200L, Eff. 91.7%. IP55.

Rated Power 50Hz
18.5 kW
Degree of Protection
IP55
Frame Size
200L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 18.5 kW
Rated Power 60Hz 22.0 kW
Rated Speed 978 rpm
Rated Torque 181.0 Nm
Number of Poles 6
Rated Current 37.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 200L
Weight (IM B3) 166.0 kg
Moment of Inertia 0.28 kgm2

Performance

Efficiency 4/4 Load 91.7 %
Efficiency 3/4 Load 92.5 %
Efficiency 2/4 Load 92.4 %
Power Factor 0.79

Dimensions

Shaft height (H) 200 mm
Shaft diameter (D) 55 mm
Shaft length (E) 110 mm
Key width (F) 16 mm
Dimension over key (GA) 59 mm
Foot holes - across (A) 318 mm
Foot holes - along (B) 305 mm
Shaft shoulder to foot hole (C) 133 mm
Foot hole diameter (K) 18.5 mm
Overall width (AB) 378 mm
Overall diameter (AC) 396 mm
Centre to top of terminal box (AD) 315 mm
Overall length (L) 721 mm
Overall length incl. shaft (LC) 860 mm

Detailed Description

GP Motors aluminum IE3 Premium. Self-ventilated. Frame 63-200. Power range 0.12-45 kW. Article 1LE1003-2AC4. Rated power 18.5 kW at 50 Hz. Speed 978 rpm. Frame size 200L. Efficiency 91.7% at rated load. Degree of protection IP55. Insulation class F.
