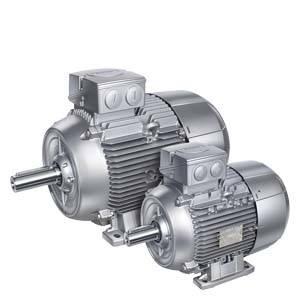

Innomotics GP 1LE1002 1.5kW 4P

Name: Innomotics GP 1LE1002 1.5kW 4P
Brand: Innomotics
SKU: 1LE1002-0EB4
Availability: InStock

SKU: 1LE1002-0EB4

Innomotics GP — General Purpose

Motor IE1 Standard Efficiency: 1.5 kW. 1410 rpm, Frame 90L, Eff. 90.0%. IP55.

Rated Power 50Hz

1.5 kW

Degree of Protection

IP55

Frame Size

90L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	1.5 kW
Rated Power 60Hz	1.75 kW
Rated Speed	1410 rpm
Rated Torque	10.2 Nm
Number of Poles	4
Rated Current	77.2 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	90L
Weight (IM B3)	15.0 kg
Moment of Inertia	0.005957 kgm2

Performance

Efficiency 4/4 Load	90.0 %
Efficiency 3/4 Load	77.2 %
Efficiency 2/4 Load	77.8 %
Power Factor	0.2

Dimensions

Shaft height (H)	90 mm
Shaft diameter (D)	24 mm
Shaft length (E)	50 mm
Key width (F)	8 mm
Dimension over key (GA)	27 mm
Foot holes - across (A)	140 mm
Foot holes - along (B)	125 mm
Shaft shoulder to foot hole (C)	56 mm
Foot hole diameter (K)	10 mm
Overall width (AB)	165 mm
Overall diameter (AC)	178 mm
Centre to top of terminal box (AD)	126 mm
Overall length (L)	387 mm
Overall length incl. shaft (LC)	445 mm

Detailed Description

GP Motors aluminum IE1 Standard. Per mercati dove IE1 e ancora ammesso. Article 1LE1002-0EB4. Rated power 1.5 kW at 50 Hz. Speed 1410 rpm. Frame size 90L. Efficiency 90.0% at rated load. Degree of protection IP55. Insulation class F.
