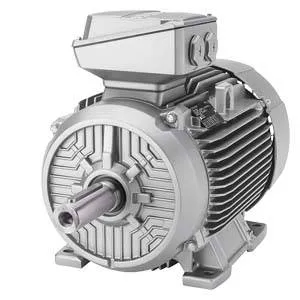

Innomotics SD VSD4000 1FP1514 0.55kW 4P

Name: Innomotics SD VSD4000 1FP1514 0.55kW 4P
Brand: Innomotics
SKU: 1FP1514-0DB2
Availability: InStock

SKU: 1FP1514-0DB2

Converter Operation Motors (VSD)

Motor Synchronous reluctance: 0.55 kW. Frame 80M, Eff. 80.0%. IP55.

Rated Power 50Hz

0.55 kW

Degree of Protection

IP55

Frame Size

80M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	0.55 kW
Rated Power 60Hz	80.0 kW
Number of Poles	4
Rated Current	80.0 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size

80M

Performance

Efficiency 4/4 Load	80.0 %
Efficiency 3/4 Load	50.0 %
Efficiency 2/4 Load	83.9 %
Power Factor	0.55

Dimensions

Shaft height (H)	80 mm
Shaft diameter (D)	19 mm
Shaft length (E)	40 mm
Key width (F)	6 mm
Dimension over key (GA)	21.5 mm
Foot holes - across (A)	125 mm
Foot holes - along (B)	100 mm
Shaft shoulder to foot hole (C)	50 mm
Foot hole diameter (K)	9.5 mm
Overall width (AB)	150 mm
Overall diameter (AC)	159 mm
Centre to top of terminal box (AD)	121.5 mm
Overall length (L)	292 mm
Overall length incl. shaft (LC)	343 mm

Detailed Description

Motors synchronous reluctance VSD4000 cast iron per SINAMICS converters. Article 1FP1514-0DB2. Rated power 0.55 kW at 50 Hz. Frame size 80M. Efficiency 80.0% at rated load. Degree of protection IP55. Insulation class F.
