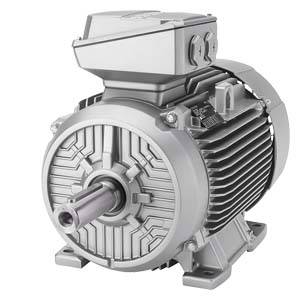

Innomotics SD VSD4000 1FP1514 2.2kW 4P

Name: Innomotics SD VSD4000 1FP1514 2.2kW 4P
Brand: Innomotics
SKU: 1FP1514-1BB0
Availability: InStock

SKU: 1FP1514-1BB0

Converter Operation Motors (VSD)

Motor Synchronous reluctance: 2.2 kW. Frame 112M, Eff. 50.0%. IP55.

Rated Power 50Hz

2.2 kW

Degree of Protection

IP55

Frame Size

112M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	2.2 kW
Rated Power 60Hz	112.0 kW
Number of Poles	4
Rated Current	5.3 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size

112M

Performance

Efficiency 4/4 Load	50.0 %
Power Factor	0.71

Dimensions

Shaft height (H)	112 mm
Shaft diameter (D)	28 mm
Shaft length (E)	60 mm
Key width (F)	8 mm
Dimension over key (GA)	31 mm
Foot holes - across (A)	190 mm
Foot holes - along (B)	140 mm
Shaft shoulder to foot hole (C)	70 mm
Foot hole diameter (K)	12 mm
Overall width (AB)	226 mm
Overall diameter (AC)	222 mm
Centre to top of terminal box (AD)	177 mm
Overall length (L)	415.5 mm
Overall length incl. shaft (LC)	475 mm

Detailed Description

Motors synchronous reluctance VSD4000 cast iron per SINAMICS converters. Article 1FP1514-1BB0. Rated power 2.2 kW at 50 Hz. Frame size 112M. Efficiency 50.0% at rated load. Degree of protection IP55. Insulation class F.
