Innomotics 1LE0043-1EC4 Cast Iron 15 kW IE3

Name: Innomotics 1LE0043-1EC4 Cast Iron 15 kW IE3
Brand: Innomotics
SKU: 1LE0043-1EC4
Availability: InStock

SKU: 1LE0043-1EC4

Flow Line Motors

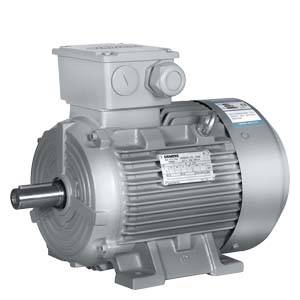

Cast Iron Flow Line motor, 15 kW, IE3, 975 rpm, frame 180 L

Rated Power

15 kW

Sound Pressure Level

59 dB(A)

Frame Size

180 L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	15 kW
Rated Speed	975 rpm
Efficiency Class	IE3
Efficiency at 100% Load	91.2 %
Efficiency at 75% Load	92.1 %
Efficiency at 50% Load	91.8 %
Power Factor	0.8
Rated Current	147.0 A
Rated Torque	29.5 Nm
Starting Current Ratio (Ist/In)	7.0
Starting Torque Ratio (Tstart/Tn)	2.3
Maximum Torque Ratio (Tmax/Tn)	3.0

Environmental

Sound Pressure Level	59 dB(A)
Sound Power Level	73 dB(A)

Mechanical

Frame Size	180 L
Enclosure Material	Cast Iron
Weight	163 kg

Detailed Description

Innomotics 1LE0043-1EC4 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 15 kW at 975 rpm. Frame size 180 L. Efficiency 91.2% at full load. Rated current 147.0 A. Weight 163 kg.
