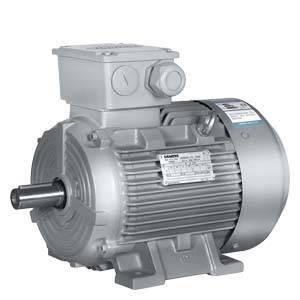

Innomotics 1LE0043-1EB2 Cast Iron 18.5 kW IE3

Name: Innomotics 1LE0043-1EB2 Cast Iron 18.5 kW IE3
Brand: Innomotics
SKU: 1LE0043-1EB2
Availability: InStock

SKU: 1LE0043-1EB2

Flow Line Motors

Cast Iron Flow Line motor, 18.5 kW, IE3, 1470 rpm, frame 180 M

Rated Power

18.5 kW

Sound Pressure Level

63 dB(A)

Frame Size

180 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	18.5 kW
Rated Speed	1470 rpm
Efficiency Class	IE3
Efficiency at 100% Load	92.6 %
Efficiency at 75% Load	93.0 %
Efficiency at 50% Load	92.5 %
Power Factor	0.83
Rated Current	120.0 A
Rated Torque	34.5 Nm
Starting Current Ratio (Ist/In)	7.8
Starting Torque Ratio (Tstart/Tn)	2.6
Maximum Torque Ratio (Tmax/Tn)	3.6

Environmental

Sound Pressure Level	63 dB(A)
Sound Power Level	76 dB(A)

Mechanical

Frame Size	180 M
Enclosure Material	Cast Iron
Weight	162 kg

Detailed Description

Innomotics 1LE0043-1EB2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 18.5 kW at 1470 rpm. Frame size 180 M. Efficiency 92.6% at full load. Rated current 120.0 A. Weight 162 kg.
