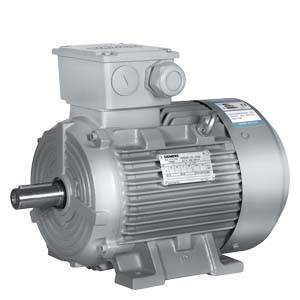

Innomotics 1LE0043-1EA2 Cast Iron 22 kW IE3

Name: Innomotics 1LE0043-1EA2 Cast Iron 22 kW IE3
Brand: Innomotics
SKU: 1LE0043-1EA2
Availability: InStock

SKU: 1LE0043-1EA2

Flow Line Motors

Cast Iron Flow Line motor, 22 kW, IE3, 2950 rpm, frame 180 M

Rated Power

22 kW

Sound Pressure Level

70 dB(A)

Frame Size

180 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	22 kW
Rated Speed	2950 rpm
Efficiency Class	IE3
Efficiency at 100% Load	92.7 %
Efficiency at 75% Load	93.0 %
Efficiency at 50% Load	92.4 %
Power Factor	0.89
Rated Current	71.2 A
Rated Torque	38.5 Nm
Starting Current Ratio (Ist/In)	7.8
Starting Torque Ratio (Tstart/Tn)	2.4
Maximum Torque Ratio (Tmax/Tn)	3.4

Environmental

Sound Pressure Level	70 dB(A)
Sound Power Level	83 dB(A)

Mechanical

Frame Size	180 M
Enclosure Material	Cast Iron
Weight	162 kg

Detailed Description

Innomotics 1LE0043-1EA2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 22 kW at 2950 rpm. Frame size 180 M. Efficiency 92.7% at full load. Rated current 71.2 A. Weight 162 kg.
