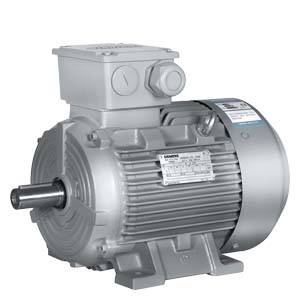

Innomotics 1LE0043-1DB2 Cast Iron 11 kW IE3

Name: Innomotics 1LE0043-1DB2 Cast Iron 11 kW IE3
Brand: Innomotics
SKU: 1LE0043-1DB2
Availability: InStock

SKU: 1LE0043-1DB2

Flow Line Motors

Cast Iron Flow Line motor, 11 kW, IE3, 1465 rpm, frame 160 M

Rated Power

11 kW

Sound Pressure Level

61 dB(A)

Frame Size

160 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	11 kW
Rated Speed	1465 rpm
Efficiency Class	IE3
Efficiency at 100% Load	91.4 %
Efficiency at 75% Load	92.4 %
Efficiency at 50% Load	92.6 %
Power Factor	0.86
Rated Current	72.0 A
Rated Torque	20.0 Nm
Starting Current Ratio (Ist/In)	7.8
Starting Torque Ratio (Tstart/Tn)	2.4
Maximum Torque Ratio (Tmax/Tn)	3.8

Environmental

Sound Pressure Level	61 dB(A)
Sound Power Level	73 dB(A)

Mechanical

Frame Size	160 M
Enclosure Material	Cast Iron
Weight	105 kg

Detailed Description

Innomotics 1LE0043-1DB2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 11 kW at 1465 rpm. Frame size 160 M. Efficiency 91.4% at full load. Rated current 72.0 A. Weight 105 kg.
