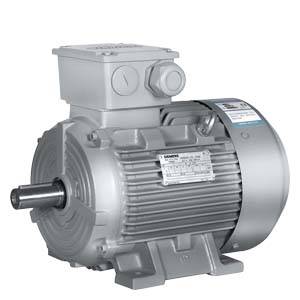

Innomotics 1LE0043-1CC2 Cast Iron 4 kW IE3

Name: Innomotics 1LE0043-1CC2 Cast Iron 4 kW IE3
Brand: Innomotics
SKU: 1LE0043-1CC2
Availability: InStock

SKU: 1LE0043-1CC2

Flow Line Motors

Cast Iron Flow Line motor, 4 kW, IE3, 960 rpm, frame 132 M

Rated Power

4 kW

Sound Pressure Level

57 dB(A)

Frame Size

132 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	4 kW
Rated Speed	960 rpm
Efficiency Class	IE3
Efficiency at 100% Load	86.8 %
Efficiency at 75% Load	88.5 %
Efficiency at 50% Load	88.7 %
Power Factor	0.75
Rated Current	40.0 A
Rated Torque	8.9 Nm
Starting Current Ratio (Ist/In)	6.0
Starting Torque Ratio (Tstart/Tn)	2.7
Maximum Torque Ratio (Tmax/Tn)	3.4

Environmental

Sound Pressure Level	57 dB(A)
Sound Power Level	69 dB(A)

Mechanical

Frame Size	132 M
Enclosure Material	Cast Iron
Weight	70 kg

Detailed Description

Innomotics 1LE0043-1CC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 4 kW at 960 rpm. Frame size 132 M. Efficiency 86.8% at full load. Rated current 40.0 A. Weight 70 kg.
