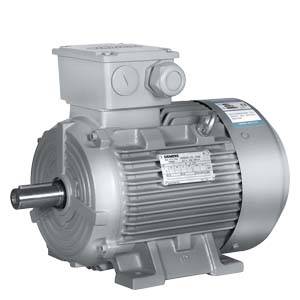

Innomotics 1LE0043-1CB2 Cast Iron 7.5 kW IE3

Name: Innomotics 1LE0043-1CB2 Cast Iron 7.5 kW IE3
Brand: Innomotics
SKU: 1LE0043-1CB2
Availability: InStock

SKU: 1LE0043-1CB2

Flow Line Motors

Cast Iron Flow Line motor, 7.5 kW, IE3, 1455 rpm, frame 132 M

Rated Power

7.5 kW

Sound Pressure Level

59 dB(A)

Frame Size

132 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	7.5 kW
Rated Speed	1455 rpm
Efficiency Class	IE3
Efficiency at 100% Load	90.4 %
Efficiency at 75% Load	91.7 %
Efficiency at 50% Load	93.2 %
Power Factor	0.85
Rated Current	49.2 A
Rated Torque	14.1 Nm
Starting Current Ratio (Ist/In)	7.8
Starting Torque Ratio (Tstart/Tn)	2.6
Maximum Torque Ratio (Tmax/Tn)	3.8

Environmental

Sound Pressure Level	59 dB(A)
Sound Power Level	71 dB(A)

Mechanical

Frame Size	132 M
Enclosure Material	Cast Iron
Weight	78 kg

Detailed Description

Innomotics 1LE0043-1CB2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 7.5 kW at 1455 rpm. Frame size 132 M. Efficiency 90.4% at full load. Rated current 49.2 A. Weight 78 kg.
