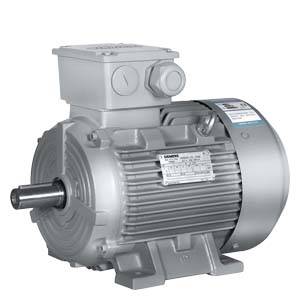

Innomotics 1LE0043-1BC2 Cast Iron 2.2 kW IE3

Name: Innomotics 1LE0043-1BC2 Cast Iron 2.2 kW IE3
Brand: Innomotics
SKU: 1LE0043-1BC2
Availability: InStock

SKU: 1LE0043-1BC2

Flow Line Motors

Cast Iron Flow Line motor, 2.2 kW, IE3, 945 rpm, frame 112 M

Rated Power

2.2 kW

Sound Pressure Level

53 dB(A)

Frame Size

112 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	2.2 kW
Rated Speed	945 rpm
Efficiency Class	IE3
Efficiency at 100% Load	84.3 %
Efficiency at 75% Load	86.1 %
Efficiency at 50% Load	85.4 %
Power Factor	0.74
Rated Current	22.2 A
Rated Torque	4.95 Nm
Starting Current Ratio (Ist/In)	6.0
Starting Torque Ratio (Tstart/Tn)	2.7
Maximum Torque Ratio (Tmax/Tn)	3.4

Environmental

Sound Pressure Level	53 dB(A)
Sound Power Level	65 dB(A)

Mechanical

Frame Size	112 M
Enclosure Material	Cast Iron
Weight	48 kg

Detailed Description

Innomotics 1LE0043-1BC2 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 2.2 kW at 945 rpm. Frame size 112 M. Efficiency 84.3% at full load. Rated current 22.2 A. Weight 48 kg.
