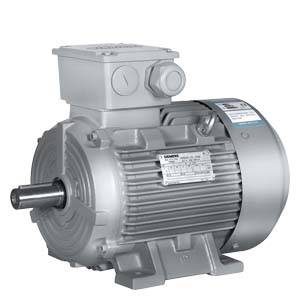

Innomotics 1LE0043-0DC3 Cast Iron 0.55 kW IE3

Name: Innomotics 1LE0043-0DC3 Cast Iron 0.55 kW IE3
Brand: Innomotics
SKU: 1LE0043-0DC3
Availability: InStock

SKU: 1LE0043-0DC3

Flow Line Motors

Cast Iron Flow Line motor, 0.55 kW, IE3, 940 rpm, frame 80 M

Rated Power

0.55 kW

Sound Pressure Level

44 dB(A)

Frame Size

80 M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power	0.55 kW
Rated Speed	940 rpm
Efficiency Class	IE3
Efficiency at 100% Load	77.2 %
Efficiency at 75% Load	77.5 %
Efficiency at 50% Load	74.6 %
Power Factor	0.67
Rated Current	5.6 A
Rated Torque	1.53 Nm
Starting Current Ratio (Ist/In)	5.0
Starting Torque Ratio (Tstart/Tn)	2.7
Maximum Torque Ratio (Tmax/Tn)	3.4

Environmental

Sound Pressure Level	44 dB(A)
Sound Power Level	55 dB(A)

Mechanical

Frame Size	80 M
Enclosure Material	Cast Iron
Weight	19 kg

Detailed Description

Innomotics 1LE0043-0DC3 Flow Line motor with cast iron enclosure. IE3 efficiency class, rated power 0.55 kW at 940 rpm. Frame size 80 M. Efficiency 77.2% at full load. Rated current 5.6 A. Weight 19 kg.
