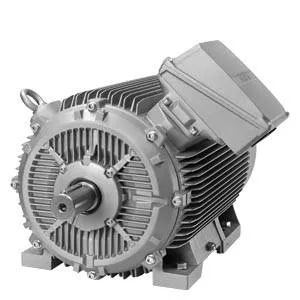

Innomotics SD 1LE5604 315.0kW 2P

Name: Innomotics SD 1LE5604 315.0kW 2P
Brand: Innomotics
SKU: 1LE5604-3AA6
Availability: InStock

SKU: 1LE5604-3AA6

Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE4: 315.0 kW. 3000 rpm. IP55.

Rated Power 50Hz

315.0 kW

Degree of Protection

IP55

Frame Size

315L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	315.0 kW
Rated Power 60Hz	2.0 kW
Rated Speed	3000 rpm
Number of Poles	2

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size

315L

Dimensions

Shaft height (H)	315 mm
Shaft diameter (D)	65 mm
Shaft length (E)	140 mm
Key width (F)	18 mm
Dimension over key (GA)	69 mm
Foot holes - across (A)	508 mm
Foot holes - along (B)	508 mm
Shaft shoulder to foot hole (C)	216 mm
Foot hole diameter (K)	28 mm
Overall width (AB)	610 mm
Overall diameter (AC)	616 mm
Centre to top of terminal box (AD)	515 mm
Overall height (HD)	800 mm
Overall length (L)	1282 mm
Overall length incl. shaft (LC)	1332 mm

Detailed Description

SD Motors new generation Performance Line cast iron IE4. Article 1LE5604-3AA6. Rated power 315.0 kW at 50 Hz. Speed 3000 rpm. Degree of protection IP55. Insulation class F.
