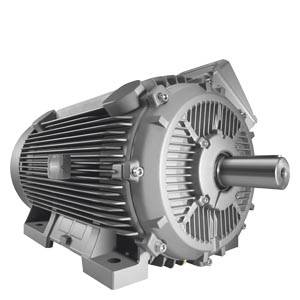

Motor Next Gen IE3: 400.0 kW. 742 rpm, Eff. 95.7%. IP55.
Genuine Innomotics products from an authorized distributor. We respond to quote requests within 4 business hours.
| Rated Power 50Hz | 400.0 kW |
| Rated Power 60Hz | 400.0 kW |
| Rated Speed | 742 rpm |
| Rated Torque | 5100.0 Nm |
| Number of Poles | 8 |
| Rated Current | 740.0 A |
| Degree of Protection | IP55 |
| Insulation Class | F (155) |
| Cooling Method | IC411 / IC418 |
| Weight (IM B3) | 3100.0 kg |
| Moment of Inertia | 24.5 kgm2 |
| Frame Size | 400 |
| Efficiency 4/4 Load | 95.7 % |
| Efficiency 3/4 Load | 95.8 % |
| Efficiency 2/4 Load | 95.5 % |
| Power Factor | 0.81 |
| Shaft diameter (D) | 80 mm |
| Shaft length (E) | 170 mm |
| Key width (F) | 22 mm |
| Dimension over key (GA) | 85 mm |
| Foot hole diameter (K) | 35 mm |
| Overall height (HD) | 980 mm |
| Overall length (L) | 1795 mm |
| Overall length incl. shaft (LC) | 1940 mm |
