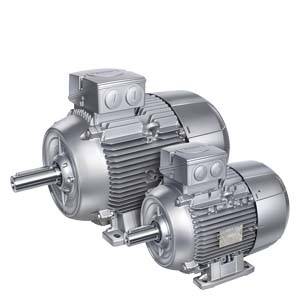

Innomotics GP 1LE1002 4.0kW 6P

Name: Innomotics GP 1LE1002 4.0kW 6P
Brand: Innomotics
SKU: 1LE1002-1CC2
Availability: InStock

SKU: 1LE1002-1CC2

Innomotics GP — General Purpose

Motor IE1 Standard Efficiency: 4.0 kW. 955 rpm, Frame 132M, Eff. 81.4%. IP55.

Rated Power 50Hz

4.0 kW

Degree of Protection

IP55

Frame Size

132M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	4.0 kW
Rated Power 60Hz	4.55 kW
Rated Speed	955 rpm
Rated Torque	40.0 Nm
Number of Poles	6
Rated Current	9.3 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	132M
Weight (IM B3)	39.0 kg
Moment of Inertia	0.021 kgm2

Performance

Efficiency 4/4 Load	81.4 %
Efficiency 3/4 Load	82.5 %
Efficiency 2/4 Load	81.9 %
Power Factor	0.76

Dimensions

Shaft height (H)	132 mm
Shaft diameter (D)	38 mm
Shaft length (E)	80 mm
Key width (F)	10 mm
Dimension over key (GA)	41 mm
Foot holes - across (A)	216 mm
Foot holes - along (B)	178 mm
Shaft shoulder to foot hole (C)	89 mm
Foot hole diameter (K)	12 mm
Overall width (AB)	256 mm
Overall diameter (AC)	262 mm
Centre to top of terminal box (AD)	202 mm
Overall length (L)	516.5 mm
Overall length incl. shaft (LC)	585.5 mm

Detailed Description

GP Motors aluminum IE1 Standard. Per mercati dove IE1 e ancora ammesso. Article 1LE1002-1CC2. Rated power 4.0 kW at 50 Hz. Speed 955 rpm. Frame size 132M. Efficiency 81.4% at rated load. Degree of protection IP55. Insulation class F.
