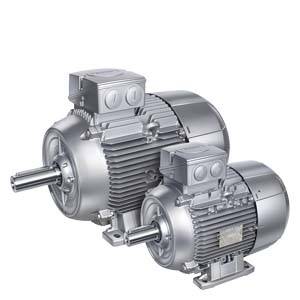

Innomotics GP 1LE1001 2.2kW 8P

Name: Innomotics GP 1LE1001 2.2kW 8P
Brand: Innomotics
SKU: 1LE1001-1CD0
Availability: InStock

SKU: 1LE1001-1CD0

Innomotics GP — General Purpose

Motor IE2 High Efficiency: 2.2 kW. 725 rpm, Frame 132S, Eff. 77.6%. IP55.

Rated Power 50Hz

2.2 kW

Degree of Protection

IP55

Frame Size

132S

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz	2.2 kW
Rated Power 60Hz	2.55 kW
Rated Speed	725 rpm
Rated Torque	29.0 Nm
Number of Poles	8
Rated Current	6.6 A

Environmental

Degree of Protection	IP55
Insulation Class	F (155)
Cooling Method	IC411 / IC418

Mechanical

Frame Size	132S
Weight (IM B3)	46.0 kg
Moment of Inertia	0.034 kgm2

Performance

Efficiency 4/4 Load	77.6 %
Efficiency 3/4 Load	78.2 %
Efficiency 2/4 Load	76.6 %
Power Factor	0.62

Dimensions

Shaft height (H)	132 mm
Shaft diameter (D)	38 mm
Shaft length (E)	80 mm
Key width (F)	10 mm
Dimension over key (GA)	41 mm
Foot holes - across (A)	216 mm
Foot holes - along (B)	140 mm
Shaft shoulder to foot hole (C)	89 mm
Foot hole diameter (K)	12 mm
Overall width (AB)	256 mm
Overall diameter (AC)	262 mm
Centre to top of terminal box (AD)	202 mm
Overall length (L)	466.5 mm
Overall length incl. shaft (LC)	535.5 mm

Detailed Description

GP Motors aluminum IE2 High Efficiency. Excellent value for money. Frame 63-315. Article 1LE1001-1CD0. Rated power 2.2 kW at 50 Hz. Speed 725 rpm. Frame size 132S. Efficiency 77.6% at rated load. Degree of protection IP55. Insulation class F.
