Right-angle bevel servo geared motor, 2 or 3 stages, up to 8160 Nm maximum output torque.

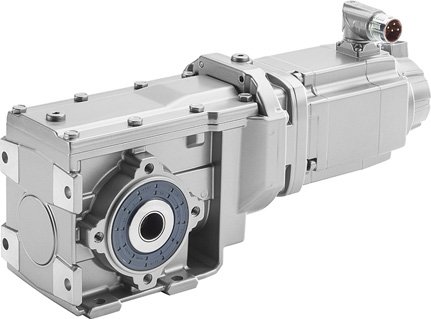

Servo bevel geared motors SIMOTICS S-1FG1 combine the servomotor with a 2-stage (gearbox type B) or 3-stage (gearbox type K) bevel gearbox for right-angle drives and can be mounted in any position. Ve
This product line is built to your application: the configuration (size, ratio, brake, encoder, fieldbus, mounting) is defined together with our technical team, so there is no fixed article number to pick from a shelf. Tell us your duty point and we come back with a configured proposal and a price.
| Transmission stages | 2-stage, 3-stage |
| Gearbox sizes | B19 ... B49, K39 ... K149 |
| Number of gearbox sizes | 4, 8 |
| Gear ratio | 3.5 ... 59.3, 5.2 ... 244.3 |
| Max output torque | 15 ... 465, 24 ... 8160 Nm |
The Innomotics Servo bevel geared motors SIMOTICS S-1FG1 product family within the Servo Geared Motors (SIMOTICS 1FG1) category represents high-quality German engineering designed for demanding industrial applications worldwide. With multiple products available for immediate quotation, this range covers a comprehensive spectrum of specifications to match your exact requirements.
Every motor in the Servo bevel geared motors SIMOTICS S-1FG1 series is manufactured to IEC standards, ensuring global interchangeability and compliance with international regulations. Whether you need a standard configuration or a customized solution, Tecnica Industriale Srl — as an authorized Innomotics distributor — provides expert technical support, competitive pricing, and fast delivery worldwide.
Our engineering team can help you select the optimal motor from the Servo bevel geared motors SIMOTICS S-1FG1 range based on your application requirements, including power rating, speed, mounting type, protection class, and efficiency class. Request a custom quote and receive a response within 24 business hours.
