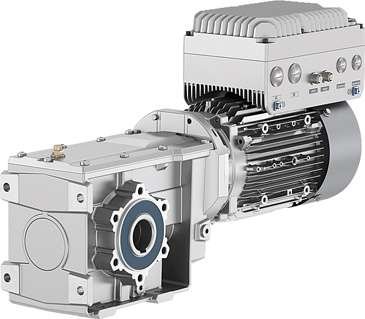

Fully preconfigured, ready-to-connect distributed drive: converter, motor and gearbox in one modular unit.
Distributed drive system that combines the converter, motor and gearbox into a fully preconfigured, ready-to-connect modular unit, available in efficiency classes IE3 and IE4. Converter frame sizes FS
This product line is built to your application: the configuration (size, ratio, brake, encoder, fieldbus, mounting) is defined together with our technical team, so there is no fixed article number to pick from a shelf. Tell us your duty point and we come back with a configured proposal and a price.
| Motor types | Asynchronous motor IE3, Synchronous reluctance motor IE4 |
| Rated power | 0.37 ... 4.0 kW |
| Rated torque | 1.75 ... 25.46 Nm |
| Efficiency classes | IE3, IE4 |
| Motor speed | 300 ... 1500 rpm, 300 ... 2610 rpm, 300 ... 3000 rpm rpm |
| Line voltage | 380 ... 480 V 3 AC |
| Control range | 1:10, 1:5, 1:8,7, 1:8.7 |
| Fieldbus interface | Without fieldbus communication / AS-Interface / PROFINET, EtherNet/IP - each with cable gland or plug-in connection |
| Converter | Mounted converter (Innomotics SG G115D) |
| Converter frame sizes | FSA, FSB |
| Cooling method | Self-ventilated (TEFC / UL TEFC); forced ventilation available as a motor option |
| Degree of protection | Motor IP55 acc. to IEC 60034-5; IP65 optional; system stated as IP65/66 |
| Braking | Internal braking resistor; optional external braking resistors for higher regenerative energy |
| Safety functions | Safe Torque Off (STO) and Safely-Limited Speed (SLS) acc. to IEC 61508 SIL 2, EN ISO 13849-1 PL d Cat. 3 |
| Ambient temperature (operation) | -30 ... +40 °C (-22 ... 104 °F) without derating; >40 ... 55 °C (104 ... 131 °F) see derating characteristics |
| Air humidity | <95 %, condensation, icing and salt mist not permissible |
| Vibration and shock | ISO 20816-1 Zone A |
The Innomotics Innomotics SG G115D distributed drive system product family within the Distributed Drives (SINAMICS G115D) category represents high-quality German engineering designed for demanding industrial applications worldwide. With multiple products available for immediate quotation, this range covers a comprehensive spectrum of specifications to match your exact requirements.
Every motor in the Innomotics SG G115D distributed drive system series is manufactured to IEC standards, ensuring global interchangeability and compliance with international regulations. Whether you need a standard configuration or a customized solution, Tecnica Industriale Srl — as an authorized Innomotics distributor — provides expert technical support, competitive pricing, and fast delivery worldwide.
Our engineering team can help you select the optimal motor from the Innomotics SG G115D distributed drive system range based on your application requirements, including power rating, speed, mounting type, protection class, and efficiency class. Request a custom quote and receive a response within 24 business hours.
